Core Function
Electrical insulation protection
It has excellent electrical insulation performance (low dielectric loss and high breakdown voltage), which can effectively isolate current and avoid the risk of leakage. It is suitable for insulation wrapping of wires, terminals, joints and other parts of high and low voltage electrical equipment, ensuring the electrical safety of equipment operation.
Mechanical damage resistance protection
The glass fiber base material endows the pipe with high mechanical strength, tensile resistance, impact resistance and wear resistance. It can withstand the collision and friction during equipment installation and operation and maintenance, and at the same time isolate external dust and moisture, thus extending the service life of electrical components.
Flame-retardant safety protection
The base material and process work together to achieve flame-retardant properties. When exposed to high temperatures or open flames, it is not easy to burn and does not release harmful smoke, reducing the fire risk caused by short circuits and overloads in electrical equipment, and is suitable for scenarios with high safety requirements.
Environmental adaptive protection
It can withstand high and low temperatures (stable operation within the range of -40℃ to 120℃), and is resistant to chemical corrosion (weak acids, weak alkalis, and oil stains). It maintains stable performance in complex environments such as humidity, high temperatures, and outdoors, and does not require frequent replacement and maintenance.
Product Application

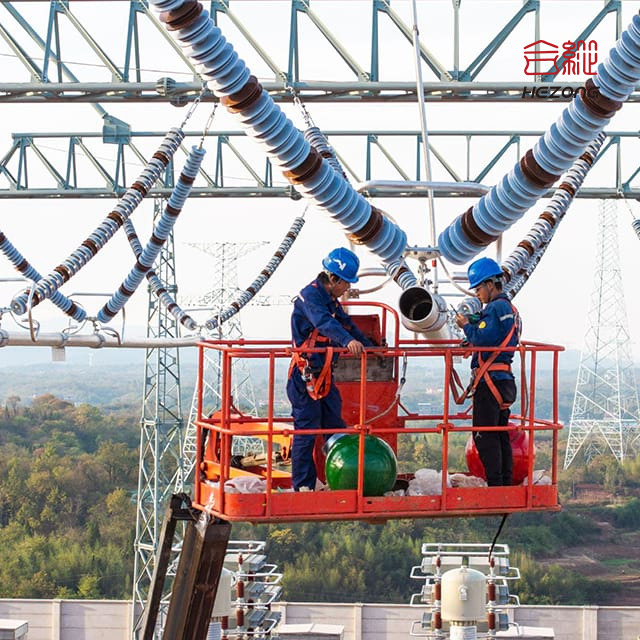

Power system: Insulation wrapping of conductors suitable for transformers and switch cabinets, protection of terminals/joints of transmission lines, and isolation of internal wiring of distribution equipment to ensure the safety of power transmission and equipment operation.

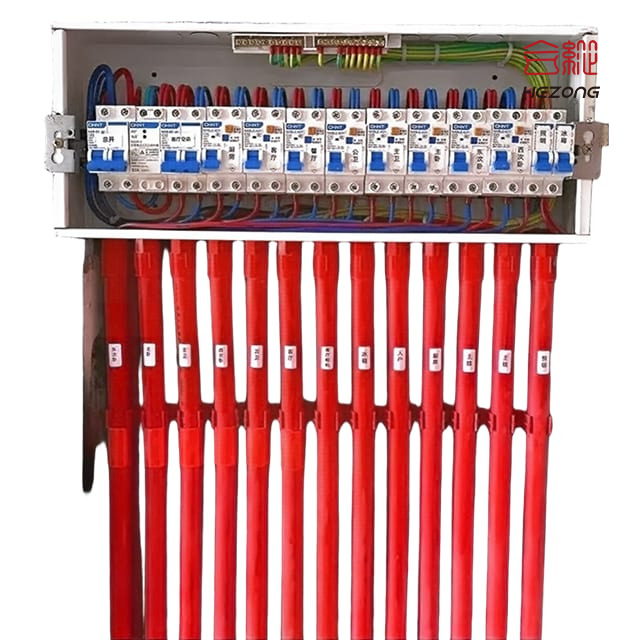

Electrical equipment: It is used for lead insulation of power equipment such as motors and water pumps, internal wiring harness protection of household appliances such as air conditioners and refrigerators, as well as wiring insulation of industrial control cabinets and distribution boxes, to enhance the insulation grade of equipment.
In the field of new energy: It covers the insulation of wires for photovoltaic inverters and combiner boxes, isolates the terminals of energy storage battery packs from the wiring harnesses, and is suitable for the protection of high-voltage wiring harnesses in new energy vehicles, meeting the high safety requirements of new energy scenarios.
Product Advantages
Customized services: Precisely matching personalized demands
Supports full-dimensional customization. The appearance can be matched with colors (Pantone color number/sample required), and the surface can be selected as matte or glossy, without the need for secondary processing.
Multi-scenario adaptation: The "three-in-one" feature reduces costs and increases efficiency
It features a three-in-one characteristic of "electrical insulation + mechanical damage resistance + flame retardant protection", covering multiple scenarios in power, electrical and new energy.
High cost performance: Long service life + low maintenance and cost savings
It has a lifespan more than twice as long as traditional PVC insulated pipes, operates stably at -40℃ to 120℃ and is corrosion-resistant. It requires no special maintenance and has a lower long-term comprehensive cost.
Technical Parameters

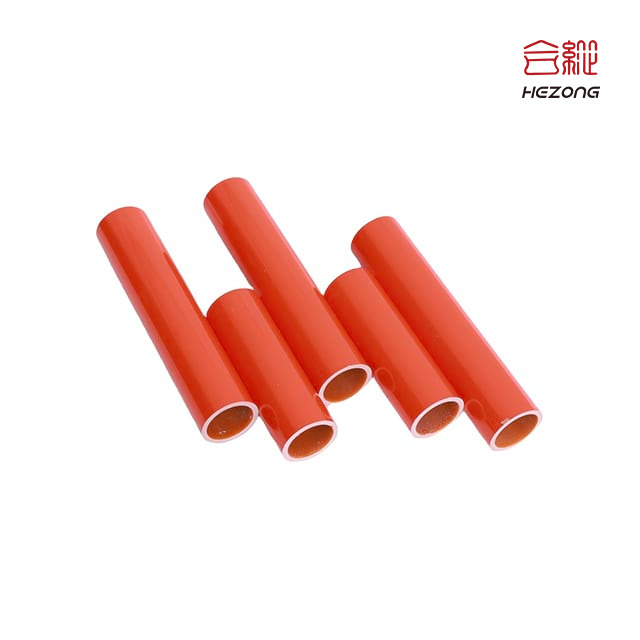

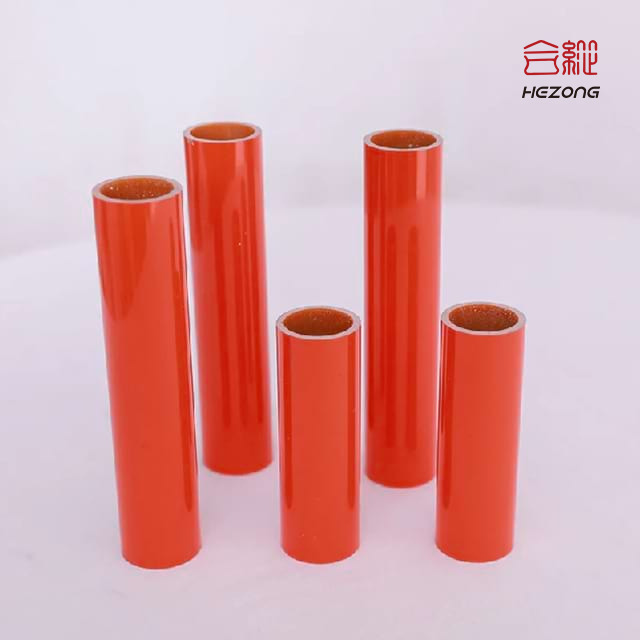

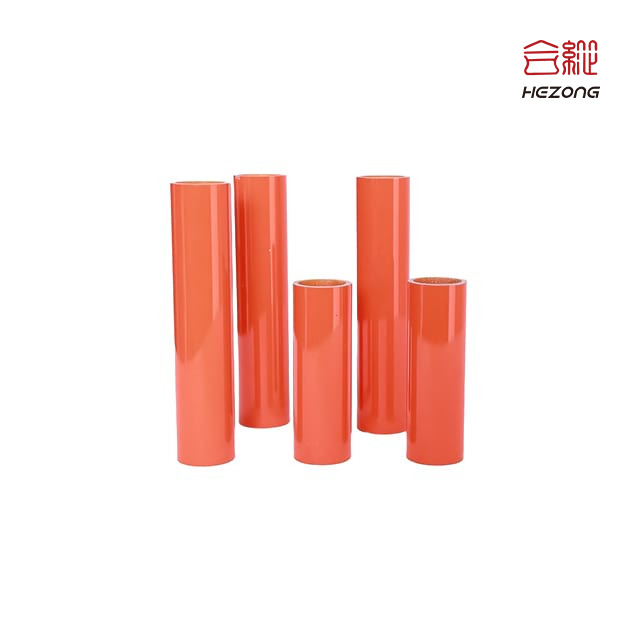

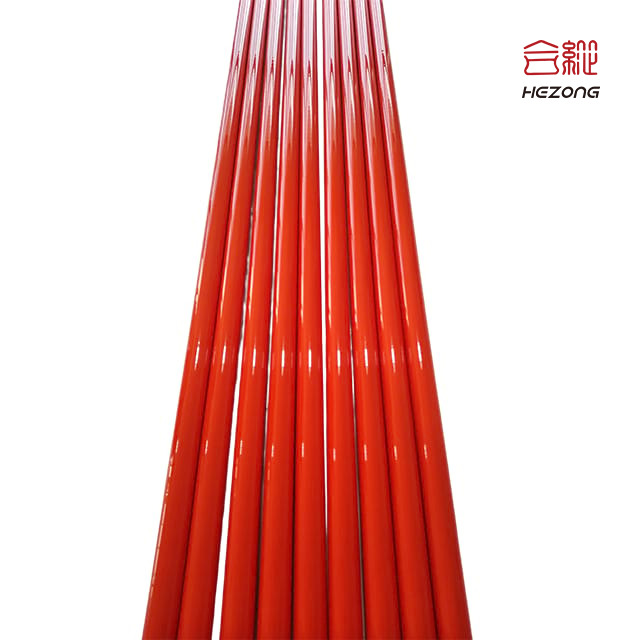

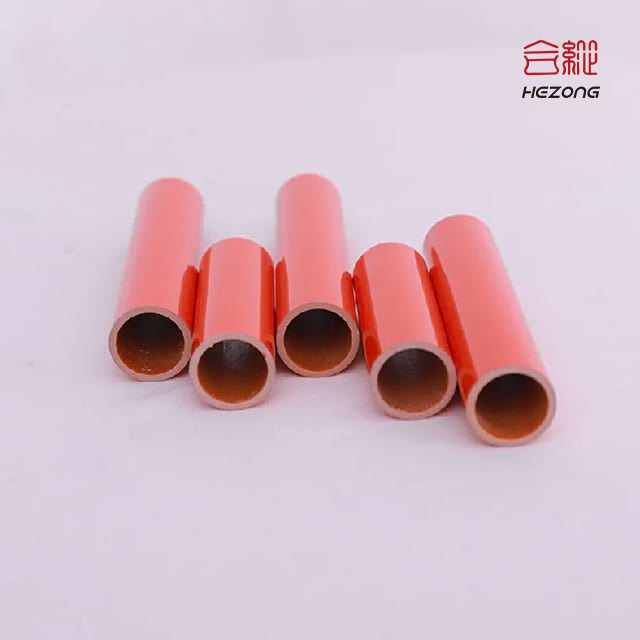

| Product Name | Orange Flame-Retardant Epoxy Glass Fiber Pipe |
| Specifications & Model | Customized according to customer requirements |
| Usage Function | High-temperature protection for wires and cables |
| Product Material | Glass fiber + resin |
| Surface Effect | Glossy |
| Surface Color | Orange |
FAQ
1. Can the raw material process ensure the stability of insulation and strength?
Yes. With glass fiber and high-quality epoxy resin as the core, it avoids insulation failure and insufficient mechanical strength problems from the production end, and meets the long-term electrical protection requirements.
2. What information is needed for customizing the size/color?
The dimensions must clearly specify the inner diameter, wall thickness and length. The color should be provided with Pantone color codes or samples.
3. Can it simultaneously meet the requirements of insulation, damage resistance and flame retardancy? Which scenarios is it compatible with?
Yes, it has the "three-in-one" feature and can directly cover the power system, electrical equipment, and new energy fields without the need to purchase multiple types of pipes separately.
4. Compared with traditional PVC insulated pipes, what are the advantages?
It has a lifespan more than twice as long, operates stably at -40℃ to 120℃ and is corrosion-resistant. No special maintenance is required, and the long-term comprehensive cost is lower.
