| Quantity: | |
|---|---|
Core Function

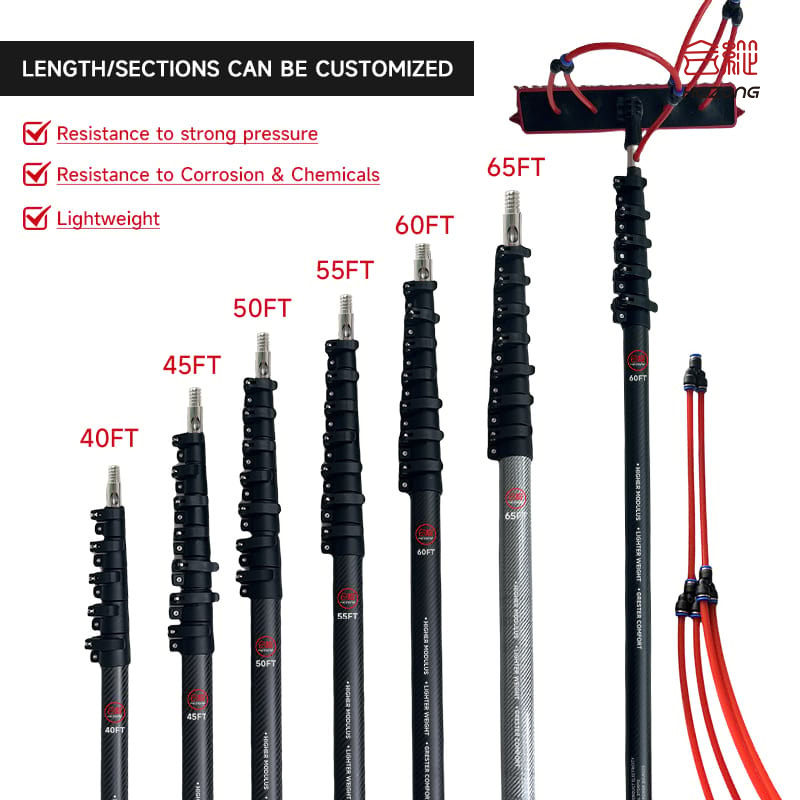

Flexible length adjustment: 10FT-65FT for free expansion and contraction, covering all operation scenarios
The pole can be precisely extended and retracted within the range of 10FT to 65FT (approximately 3.05m to 19.81m), allowing it to easily reach low areas, high-altitude operation points, and long-distance operation surfaces without the need for additional auxiliary tools. Whether it is close-range fine cleaning or high-altitude long-distance operations, it can handle them with ease, completely breaking the limitations of operation height and distance.

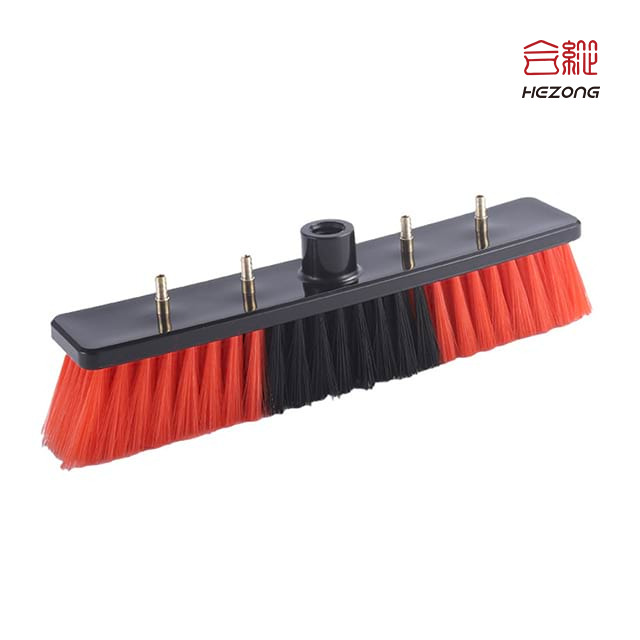

Precise matching of multiple brush heads: Switch as needed to meet diverse cleaning requirements
Equipped with multiple dedicated brush heads, they can be quickly switched according to the material of the working surface (such as glass, metal, stone, wall, etc.) and the type of stains (oil stains, stubborn stains, dust, etc.) as needed. The brush heads are firmly connected to the rod body, with strong adaptability, achieving targeted cleaning and ensuring better cleaning effects in different scenarios.
360° universal steering: Flexible operation, suitable for multiple working angles
Equipped with high-quality universal joints, the brush head can achieve 360° flexible rotation without dead corners. It can not only adapt to the operation habits of users of different heights, but also easily handle special working angles such as inclined surfaces, dead corners, and complex contours, significantly reducing the operation intensity and achieving labor-saving and efficient operation.
Water-assisted cleaning: Directional delivery, enhancing both cleaning efficiency and effectiveness
The Y-shaped pipe joint is conveniently connected to the water pipe. The water flows through the interior of the rod and is directionally delivered to the brush head, forming a synergistic effect with the scraping and brushing actions of the brush head. It quickly breaks down contaminants such as oil stains and dust. Compared with traditional dry wiping or individual wiping methods, the cleaning efficiency is increased by more than 50%, and the cleanliness lasts longer.
Multi-tool compatibility and matching: Function expansion, covering the operation requirements of all scenarios
The rod body adopts a universal interface design, which can be compatible with various operation tools such as glass scrapers, scrapers, grippers, and dust dusters. It can easily switch between multiple functions such as cleaning, dirt removal, object picking, and dust removal without the need to purchase additional dedicated rods. This significantly expands the application scenarios of the product and comprehensively covers different operation needs such as commercial cleaning, industrial maintenance, and construction.
Product Application
Home scene: Clean high-rise glass, clear dust from ceilings/chandeliers, and wipe the accumulated dust on the top of furniture. No need to climb heights to take risks.
Commercial scenarios: Cleaning shop Windows and billboards in shopping malls, clearing corridor ceilings in hotels, and cleaning high-altitude exhaust hoods in restaurants. Convenient and efficient.
Industrial scenarios: Cleaning the outer shells of factory equipment, wiping high shelves in warehouses, and clearing high-altitude ventilation outlets in parking lots. Durable and resistant to manufacturing.
New energy scenarios: Cleaning photovoltaic panels in photovoltaic power stations (without scratching), cleaning the outer shells of equipment in energy storage power stations, meeting professional requirements.
Product Advantages
High modulus carbon fiber: 40% weight reduction + no burden for long hold, resistant to bending and wear, long-lasting durability in harsh working conditions
Built-in water pipe design: No pipe entanglement for smoother operation. Water flows directly to the brush head, increasing cleaning efficiency by over 50%
All-scenario compatibility and adaptation: Universal interface for multiple uses in one stick, 360° universal steering, cost-saving and more comfortable
Dual safety customization guarantees: Locking mechanism to prevent detachment, size/material/appearance can be customized, and batch discounts are supported
Assembly Method
Step 1: Connect the brush head and the universal joint properly, and gently rotate it to ensure a stable connection between the two.
Step 2: Insert the 8mm water pipe through the top metal part connection hole into the rod body until it comes out through the inner hole at the other end, and adjust the top length to connect it with the Y-shaped pipe head connection piece. Just connect the other end to the water source.
Step 3: Connect the already assembled brush head (with universal joint) to the carbon fiber rod body, and then connect the four water distribution pipes to the water outlet of the brush head respectively. Carefully inspect all connection parts to ensure a firm connection.
Precautions
When adjusting the length, do not exceed the red termination line of each section to avoid affecting the stability and service life of the telescopic rod, and even causing safety hazards.
As carbon fiber is an excellent conductor, it is strictly prohibited to perform live electrical work or approach high-voltage electrical areas to prevent electric shock accidents.
Please keep the product out of the reach of children to prevent accidental operation and injury.
When working in special scenarios such as ponds and at heights, it is necessary to take good personal safety protection measures to ensure the safety of the working environment.
Technical Parameters
Size | Number of sections | Telescopic length(mm) | Contraction length(mm) | Weight(g) | Outer diameter at the bottom(mm) |
10FT | 2 | 3100 | 1580 | 700 | 32 |
15FT | 3 | 4600 | 1580 | 900 | 32 |
20FT | 4 | 6100 | 1730 | 1350 | 31 |
25FT | 5 | 7700 | 1580 | 1650 | 34 |
30FT | 6 | 9200 | 1770 | 1900 | 37 |
35FT | 6 | 10700 | 1770 | 2300 | 37 |
40FT | 7 | 12200 | 1770 | 2650 | 40 |
45FT | 7 | 13800 | 1830 | 3000 | 40 |
50FT | 8 | 15300 | 2100 | 3300 | 43 |
55FT | 9 | 16800 | 2100 | 4000 | 46 |
60FT | 10 | 18300 | 2100 | 4600 | 49 |
65FT | 11 | 19900 | 2100 | 5100 | 52 |
Product Name | Expandable Multi-functional Carbon Fiber Cleaning Pole (Handheld Mode, Customizable) | Product Material | Carbon Fiber |
Specifications | See attached table | Surface Texture | Twill/Plain Weave / Customizable |
Model Number | 10FT-65FT | Visual Effect | Matte/Glossy |
Usage Function | Suitable for cleaning needs in various fields such as commercial, industrial, new energy, and household applications | Visual Color | Black/Silver / Customizable |
Application Scenarios | Building exterior walls, photovoltaic maintenance, municipal facilities, garden grounds, commercial venues, vehicles/ships, home courtyards | ||
FAQ
1. How much lighter is this cleaning rod than the traditional one? Is it durable?
It is over 40% lighter than traditional metal rods, and girls can hold it for a long time without getting tired. Made of high modulus carbon fiber, it features high axial strength, resistance to bending and wear. It can be used for several years in outdoor exposure to the sun and industrial oil stains without the need for frequent tool changes.
2. How much can the length be adjusted? Can unconventional sizes be customized?
Conventionally, it can freely extend and contract within a range of 3 to 20 meters (10FT to 65FT). Customization support - dimensions, material details, colors, and logo printing beyond 3 to 20 meters can all be made according to requirements. Bulk purchases are also compatible.
3. What safety issues should be noted when using it?
① Carbon fiber is an excellent conductor. Live electrical work and proximity to high-voltage electricity are strictly prohibited to prevent electric shock. ② Keep out of reach of children to prevent accidental operation. ③ When working in ponds or at heights, it is necessary to take good personal protective measures to ensure environmental safety.
4. Is the assembly complicated? How many steps are needed to complete it?
It's not complicated. It can be done in 3 steps: ① Connect the brush head to the universal joint and tighten it. ② An 8mm water pipe is inserted into the pole body, with both ends connected to Y-shaped pipe heads and the water source. ③ Connect the brush head to the rod body, connect the water distribution pipe, and check that all interfaces are firm.
5. Which cleaning tools are compatible with it? Can the brush head be replaced?
The universal interface can be connected to glass scrapers, scrapers, tiger clamps, dust dusters, etc. Supports flexible brush head replacement, allowing for selection based on the surface to be cleaned and the type of stain, meeting diverse needs such as glass cleaning, dust removal, and stain removal.
