Core Advantage
Lightweight & high strength: With a density of only 1/4 to 1/5 that of steel, it is lightweight and easy to handle and install, requiring no heavy construction equipment, which can significantly reduce construction costs. It also features excellent specific strength, outstanding impact resistance and bending resistance, and is not prone to deformation or breakage even after long-term use.
Comprehensive corrosion resistance: It does not react with corrosive media such as acids, alkalis, salts, and organic solvents. It can be used for a long time in harsh conditions such as high salt spray in coastal areas, chemical acid and alkali environments, and underground damp environments. There is no rust or leakage, and its service life far exceeds that of traditional metal pipes (the service life in normal environments can reach 15-20 years).
Excellent insulation performance: Made of natural insulating material with high dielectric strength, it is non-conductive and non-magnetic, effectively avoiding problems such as electrical short circuits and electromagnetic interference. It is an ideal pipe material for electrical equipment wiring and high-voltage line protection.
High temperature resistance & Flame retardancy: It has a wide operating temperature range (-50℃ to 120℃, and special customized models can reach 180℃), excellent flame retardant performance (meeting UL94 V0 standard), is not easy to burn in high-temperature and open flame environments, does not release toxic gases, and has high safety in use.
Customized adaptation: Supports customization of inner diameter, outer diameter, wall thickness, length and surface treatment (such as frosted, coated, perforated) according to customer requirements, which can match the installation and usage needs of different scenarios, with high flexibility.
Product Application

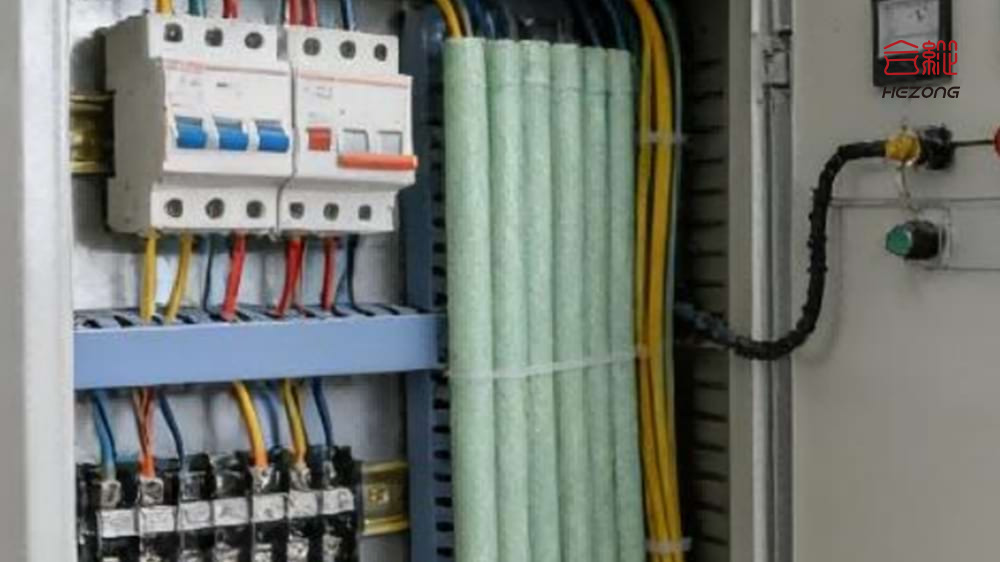

In the field of electrical and electrical engineering: High-voltage line protection bushings, motor winding insulation bushings, and distribution cabinet wiring bushings, with excellent insulation properties, ensure electrical safety.
In the field of chemical environmental protection: acid and alkali solution transportation pipelines, sewage treatment pipelines, and connection pipelines for chemical reaction vessels have strong corrosion resistance and are suitable for harsh medium environments.

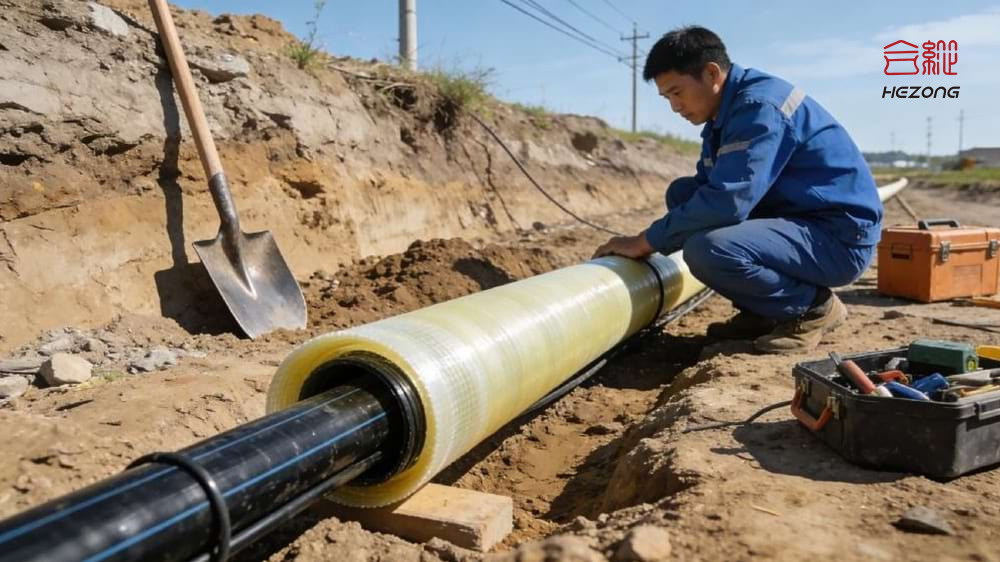

In the field of building infrastructure: Building water supply and drainage pipes, ventilation pipes, and curtain wall support sleeves. Lightweight can reduce the load on buildings, and they are corrosion-resistant and not prone to aging.

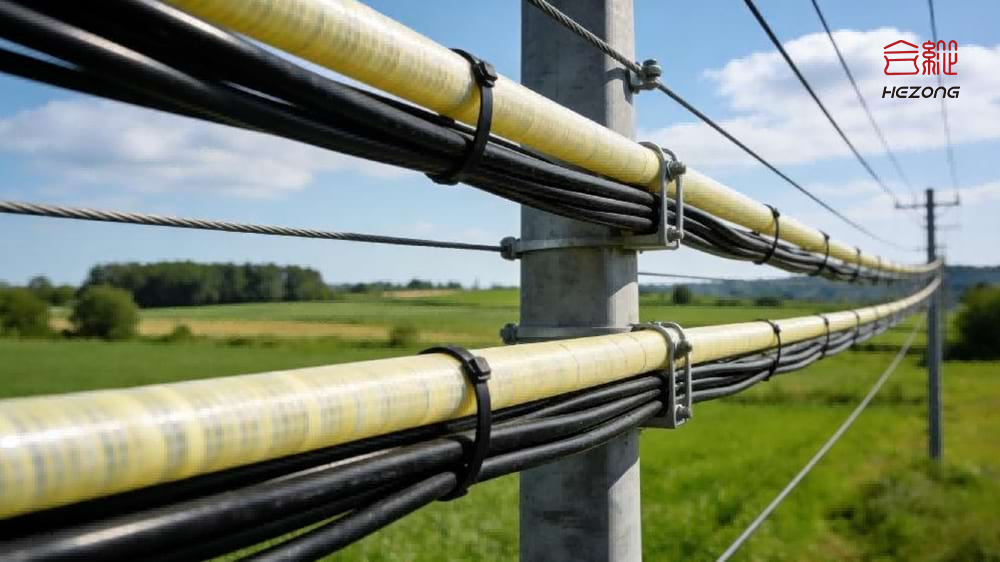

New energy field: Photovoltaic power station cable protection pipes, wind power equipment wiring conduits, high-temperature resistant, UV-resistant, suitable for harsh outdoor environments.
In the field of mechanical equipment: Hydraulic oil pipe sleeves for mechanical equipment and guide sleeves for automated equipment are impact-resistant and not prone to deformation, ensuring the stable operation of the equipment.
Outdoor security field: Surveillance camera brackets, outdoor lighting fixture sleeves, wind load resistance, rain and snow erosion resistance, long service life.
Technical Parameters
| Parameter Category | Specific Indicators |
|---|---|
| Material | Unidirectional glass fiber/epoxy resin/polyester resin |
| Density | 1.6–2.0 g/cm³ |
| Compressive Strength | ≥120 MPa |
| Flexural Strength | ≥180 MPa |
| Operating Temperature | -50°C ～ 120°C (standard model); -50°C ～ 180°C (high-temperature customized model) |
| Flame Retardancy Rating | UL94 V0 grade (optional) |
| Dielectric Strength | ≥20 kV/mm |
| Standard Dimensions | Inner diameter: 5mm–200mm, Wall thickness: 1mm–20mm, Length customizable (standard: 1–6m) |
FAQ
1. What are the core advantages of fiberglass tubes compared with traditional metal tubes and plastic tubes?
Compared with metal pipes, fiberglass pipes are lightweight (weighing only 1/4 to 1/5 of steel), rust-free, and have excellent insulation properties, which can reduce construction and maintenance costs. Compared with ordinary plastic pipes, fiberglass pipes have higher strength, better heat resistance and flame retardancy. They can adapt to harsher acid, alkali and high-temperature environments and have a longer service life (15-20 years).
2. Does the installation of fiberglass tubes require special tools or techniques?
No special tools are required. Conventional pipe installation methods such as cutting, bonding, and flange connection can be adopted, and the operation is simple. For special scenarios such as high-pressure and corrosive environments, we can provide professional installation guidance solutions.
3. How long is the service life of fiberglass tubes? Are there any differences in different environments?
Under normal conditions, the service life can reach 15 to 20 years. In harsh environments such as high salt spray by the seaside and strong acids and alkalis in the chemical industry, the service life is approximately 10 to 15 years. Under outdoor exposure to intense sunlight, due to its excellent UV resistance, its service life is basically unaffected, far exceeding that of ordinary plastic pipes.
