Unmanned aerial vehicle structural rigidity directly dictates flight control system efficiency and payload stability. When a drone operates under heavy loads or high speeds, the airframe experiences complex dynamic forces, including motor thrust, high-frequency vibration, and rapid torque shifts. A common engineering failure involves treating composites as isotropic materials. This approach inevitably leads to over-engineering, excess weight, or catastrophic in-flight failure. Classical Lamination Theory provides the mathematical framework required to analyze and predict how directional ply layups behave under these complex stress states. By specifying exact fiber orientations within a carbon fiber tube, engineers tailor anisotropic properties to match precise operational requirements. This method ensures the structural arms maintain necessary stiffness without adding unnecessary mass, optimizing the entire flight envelope for demanding applications.
0° Fibers Maximize Bending Stiffness: Unidirectional fibers running along the longitudinal axis are critical for resisting the upward bending forces generated by motor thrust.
±45° Fibers Control Torsion: Off-axis layers are essential for neutralizing the twisting forces caused by motor torque and rapid yaw maneuvers, directly impacting flight controller stability.
90° Fibers Prevent Crushing: Hoop layers provide radial strength, preventing tube collapse at clamping points and motor mounts.
Fiber Volume Fraction (FVF) Matters: The ratio of carbon fiber to resin matrix directly dictates the mechanical performance limits of high-performance carbon fiber tubes for drones, with optimal autoclaved or roll-wrapped tubes targetting 60-65% FVF.
Custom vs. COTS Trade-offs: Selecting high-performance carbon fiber tubes for drones requires balancing the exact structural optimization of custom roll-wrapped layups against the cost and availability of commercial off-the-shelf options.
Professional-grade drone arms must meet strict structural criteria. They demand a high stiffness-to-weight ratio, an elevated natural frequency, and exceptional fatigue resistance. During flight, lift generated by the propellers at the end of the arm creates a severe cantilever effect. This axial load requires immense longitudinal stiffness to prevent the arm from deflecting upward. If the arm bends under thrust, the motor angle shifts. This alters the thrust vector and forces the flight controller to constantly compensate, draining battery life and degrading handling.
Simultaneously, the arm faces intense torsional loads. Motor torque and propeller aerodynamic drag generate twisting forces along the length of the arm. Excessive twist physically rotates the motor mount relative to the central chassis. This rotational deflection confuses onboard gyroscopes and accelerometers. The result is sluggish yaw response and overall flight instability. Managing this torsion requires specific composite engineering that standard materials cannot provide.
Dynamic motor vibrations introduce another layer of complexity. Inadequate torsional and bending stiffness lowers the natural frequency of the structural arm. When this natural frequency aligns with motor-induced operating frequencies—typically between 100 Hz and 400 Hz—the arm enters resonance. Harmonic resonance amplifies vibrations, overwhelming the flight controller's Proportional-Integral-Derivative loops and dynamic notch filters. You will see visible camera jitter, erratic motor pulsing, and potential structural fatigue.
Standard pultruded tubes fail in these multi-rotor applications. Pultrusion primarily relies on 0-degree unidirectional fibers pulled through a resin bath and a heated die. While this creates excellent axial bending stiffness, it completely lacks the off-axis and hoop fibers necessary to resist torsion and crushing. Applying torque to a pultruded tube easily splits the matrix along the fiber line. You need engineered layups for reliable UAV construction.
Thrust-Induced Deflection: Upward bending alters the thrust vector, requiring constant PID correction.
Torsional Twist: Motor torque rotates the mount, confusing gyros and causing yaw instability.
Harmonic Resonance: Low stiffness drops the natural frequency, aligning with motor vibrations and overwhelming filters.
Clamping Failure: Lack of radial strength causes tubes to crush under mounting pressure.

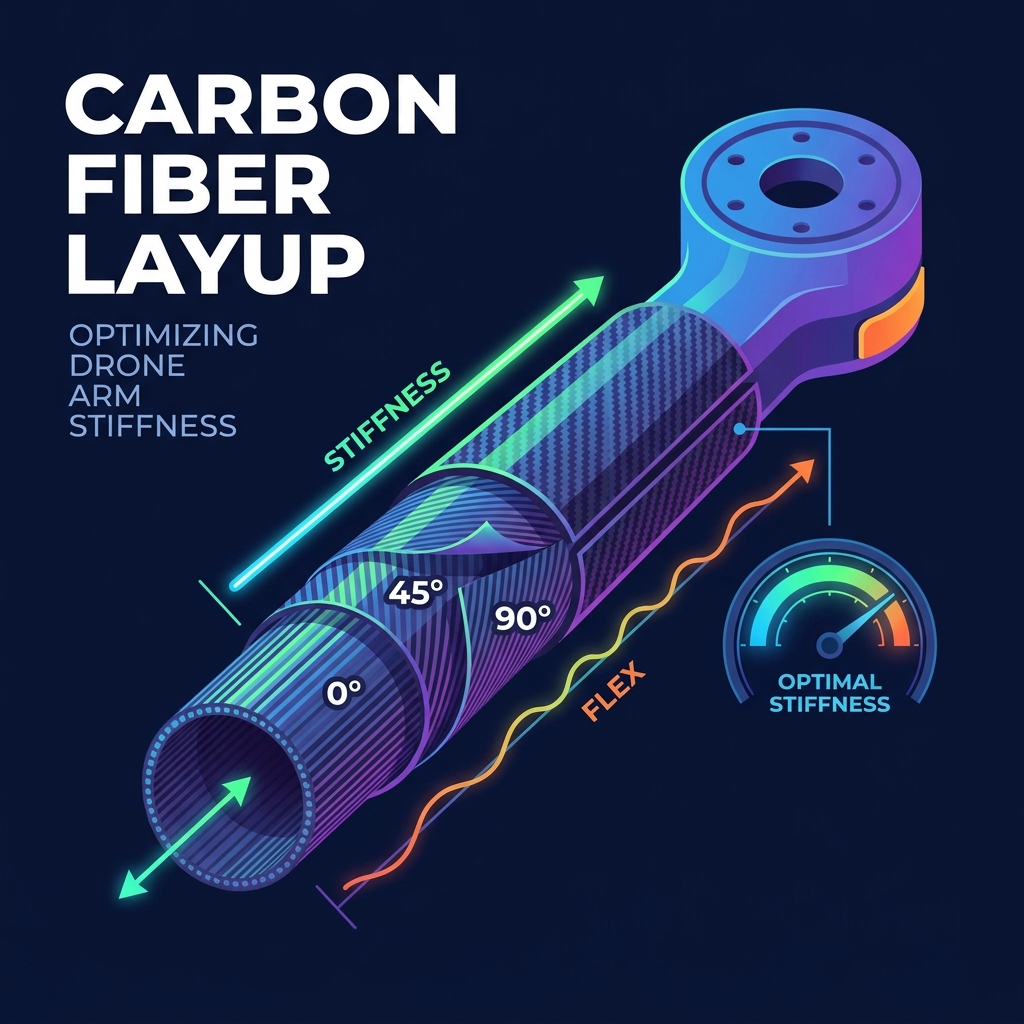

Engineered composites derive their strength from fiber directionality. Breaking down specific fiber orientations reveals their distinct mechanical contributions to the overall composite structure. You must understand how each layer functions to design an effective drone arm.
Fibers aligned parallel to the tube's longitudinal axis dictate axial bending stiffness. These 0-degree plies carry the primary tension and compression loads generated by the cantilevered motor thrust. However, a threshold of diminishing returns exists. Adding excessive 0-degree plies increases the wall thickness and overall weight without providing proportional stiffness gains. This is especially true if the tube lacks the necessary diameter to leverage the polar moment of inertia.
Off-axis fibers resist torsional twist by managing shear stress. When a tube twists, the material experiences shear forces acting at 45-degree angles to the longitudinal axis. Placing fibers exactly at ±45 degrees aligns the carbon strands directly against these principal stress vectors, maximizing the shear modulus. This specific orientation provides the optimal torsional rigidity required to keep motor mounts perfectly aligned during aggressive yaw maneuvers.
Hoop fibers wrap circumferentially around the tube. They maintain the cross-sectional shape under load, preventing the cylinder from ovalizing when subjected to bending moments. More importantly, 90-degree layers provide critical radial compressive strength. This prevents delamination and structural crushing when the tube is tightly clamped to the central drone chassis or when heavy motor mounts are bolted to the extremities.
The sequence in which these layers are stacked drastically affects performance and manufacturing yield. Layup sequences must remain symmetric and balanced around the mid-plane of the laminate to prevent thermal warping during the high-temperature curing process. Transitions between highly mismatched angles create severe stress concentrations. Placing a 0-degree ply directly adjacent to a 90-degree ply concentrates interlaminar shear stress at the boundary. Interleaving ±45-degree layers between the axial and hoop plies creates a gradual stiffness transition, mitigating shear stress and preventing ply delamination under heavy dynamic loads.
| Fiber Orientation | Primary Structural Function | Vulnerability if Omitted |
|---|---|---|
| 0° (Axial) | Bending stiffness, thrust resistance | Arm deflection, thrust vector misalignment |
| ±45° (Off-Axis) | Torsional rigidity, shear strength | Motor twist, gyro confusion, splitting |
| 90° (Hoop) | Radial strength, crush resistance | Tube collapse at clamping interfaces |
Selecting the correct structural components requires evaluating different manufacturing methods and material specifications based on precise performance outcomes. You must match the manufacturing process to your specific load requirements.
Roll-wrapping involves wrapping pre-impregnated composite sheets around a steel or aluminum mandrel before curing under pressure. This method allows for highly customized, discrete ply angles, making it ideal for engineering specific bending and torsional characteristics into drone arms. Filament winding wraps continuous resin-soaked tows around a rotating mandrel. While excellent for pressure vessels, filament winding struggles to lay fibers at very low angles, limiting its axial bending stiffness. Pullwinding serves as a hybrid option, combining continuous axial pultruded fibers with helical wound layers. This provides a high-volume, mid-tier performance solution but lacks the precise localized customization of roll-wrapping.
Professional UAV applications demand aerospace-grade prepreg fibers. Pre-impregnated materials feature a precise, factory-controlled ratio of carbon fiber to epoxy resin. This ensures uniform resin distribution, minimizes void content to below 1%, and achieves an optimal fiber volume fraction. Wet layups rely on manual resin application, introducing inconsistencies, excess resin weight, and higher void content. These factors degrade the strength-to-weight ratio needed for flight.
Engineers must evaluate the trade-offs between stiffness, brittleness, and material costs. Standard modulus fibers offer excellent tensile strength and impact resistance. Intermediate modulus fibers provide a balanced increase in stiffness without sacrificing too much durability. High modulus fibers, particularly Pitch-based variants, deliver extreme stiffness for minimal weight. However, Pitch fibers exhibit low impact toughness and high brittleness, requiring specialized handling and making them vulnerable to damage from hard landings or debris.
UAVs operate in harsh environments. The low Coefficient of Thermal Expansion of engineered composites ensures structural stability. Properly designed layups prevent arm warping and motor misalignment under extreme operating temperatures ranging from -40°C to +80°C. Additionally, selecting resin systems with high UV resistance prevents the epoxy matrix from degrading and chalking during prolonged exposure to sunlight. Using high-performance carbon fiber tubes for drones ensures these environmental factors do not compromise flight safety.
Sourcing composite tubes involves navigating commercial and operational decisions that directly impact project viability and production timelines. You must balance ideal engineering with practical manufacturing constraints.
Engineering teams must analyze the return on investment when commissioning a custom layup schedule. Custom layups optimize weight and stiffness for a specific airframe's exact load profile, maximizing flight time and payload capacity. However, this requires engineering time, tooling investments, and higher unit costs. Adapting the drone design to utilize commercial off-the-shelf roll-wrapped tubes accelerates prototyping and reduces initial expenditure, though it may result in a slightly heavier or over-engineered airframe.
The exterior finish impacts both structural durability and mechanical interfacing. A 3K twill or plain weave outer layer acts as a protective shield. The interwoven fibers resist impact damage, prevent longitudinal splitting, and withstand wear at mechanical clamping interfaces far better than a purely unidirectional outer surface. While a glossy finish offers aesthetic appeal, matte finishes often provide better friction for clamping mechanisms and require less surface preparation for structural bonding.
Scaling production introduces logistical constraints. Custom mandrels require upfront tooling costs and dictate minimum order quantities. Prototyping speed relies heavily on the manufacturer's lead times for custom schedules. Utilizing standard mandrel diameters allows manufacturers to produce custom layups without new tooling, balancing optimization with faster delivery schedules.
A fundamental engineering principle governs tube stiffness: increasing the outer diameter yields a cubic increase in bending stiffness based on the polar area moment of inertia. Therefore, a larger diameter tube with a thinner wall is structurally superior and significantly lighter than a smaller diameter tube with a thicker wall. Engineers should maximize the outer diameter within the aerodynamic and spatial constraints of the airframe before resorting to increasing wall thickness to gain rigidity.
Integrating engineered composite tubes into a UAV assembly presents practical challenges that require strict handling protocols to prevent structural degradation. Field execution is just as important as the initial design.
Drilling holes directly through highly optimized layups severs continuous load-bearing fibers and creates catastrophic stress risers. These stress concentrations often initiate micro-cracks that propagate under flight vibrations, leading to sudden failure. If machining is unavoidable, technicians must use diamond-coated tooling and high spindle speeds to prevent delamination. Waterjet cutting provides clean edges without heat-affected zones. Proper dust mitigation is mandatory, as carbon dust is highly conductive and hazardous to electronics and human health.
Mechanical fasteners crush composite tubes. Structural bonding techniques offer superior load transfer. Engineers must select high-shear structural epoxies designed specifically for composites. Surface preparation dictates bond strength; the mating surfaces must be thoroughly abraded to remove mold release agents and solvent degreased to ensure proper adhesion. Designing bonded sleeve joints or utilizing internal compression inserts distributes the load safely across the tube's surface area.
Carbon fiber is electrically conductive. When placed in direct contact with aluminum or steel components, such as motor mounts or chassis plates, galvanic corrosion rapidly degrades the metal in humid or marine environments. Mitigation tactics include integrating a non-conductive fiberglass isolation layer on the tube's exterior, utilizing titanium hardware, or heavily anodizing aluminum components to break the electrical connection.
Evaluating a vendor's quality control is critical for reliable performance. Visual inspections can identify obvious surface defects, but internal flaws require Non-Destructive Testing. Ultrasonic inspection or optical microscopy reveals resin starvation, micro-voids, and ply misalignment. Ensuring the manufacturer adheres to strict quality assurance protocols guarantees that the physical tubes match the theoretical strength calculated during the design phase.
Designing high-performance carbon fiber tubes for drones requires matching the fiber layup and tube geometry to the airframe's actual load conditions. The 0° plies provide longitudinal bending stiffness, ±45° plies resist motor-induced torsion, and 90° plies improve hoop strength around clamps and mounting points.
Engineers should generally increase the tube’s outer diameter before adding excessive wall thickness, as this provides a more efficient improvement in stiffness-to-weight performance. Roll-wrapped commercial tubes are suitable for early prototyping, while custom layups may be justified once thrust, vibration, payload, and mounting requirements have been validated.
Before full-scale production, the selected tube should be tested for bending, torsion, clamping resistance, vibration, and dimensional consistency. The best drone arm is not simply the thickest or stiffest option, but the lightest structure that can maintain motor alignment and safely withstand the expected flight loads.
A: Engineers use 3-point and 4-point bending tests to measure axial stiffness and calculate the flexural modulus. Torsion testing machines apply rotational force to measure the shear modulus, determining how effectively the tube resists twisting under load.
A: Unidirectional plies laid at specific angles provide superior structural performance compared to woven fabrics. However, a 3K woven outer layer is highly recommended to provide impact resistance, improve aesthetics, and prevent splintering during clamping or machining.
A: No. Based on the polar area moment of inertia, increasing the outer diameter is vastly more efficient for gaining stiffness. A larger, thinner-walled tube is significantly stiffer and lighter than a smaller, thicker-walled tube.
A: Standard pultrusion relies almost entirely on 0-degree longitudinal fibers. They lack the off-axis and hoop fibers necessary to manage shear stress and radial compression, making them highly susceptible to longitudinal cracking under torsion or clamping forces.
A: Drilling severs continuous fibers and creates severe stress concentrations, drastically weakening the tube. It is strongly recommended to use bonded sleeves, compression clamps, or specialized inserts instead of drilling holes for mechanical fasteners.
A: FVF is the ratio of carbon fiber to resin matrix. High-performance tubes require a 60-65% FVF to maximize the strength-to-weight ratio. Lower quality tubes contain excess resin, which adds dead weight without contributing to structural strength.
