Product Overview

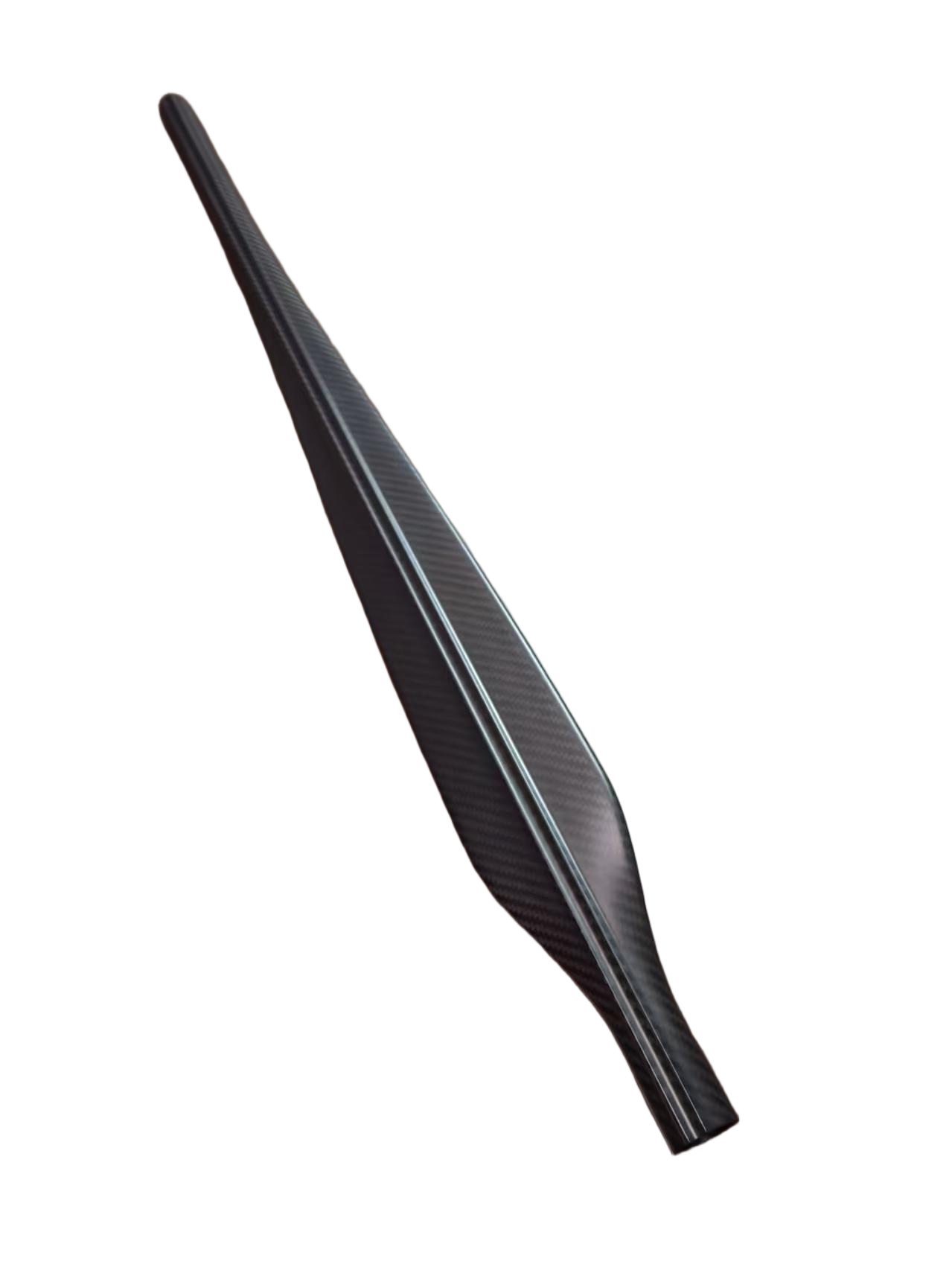

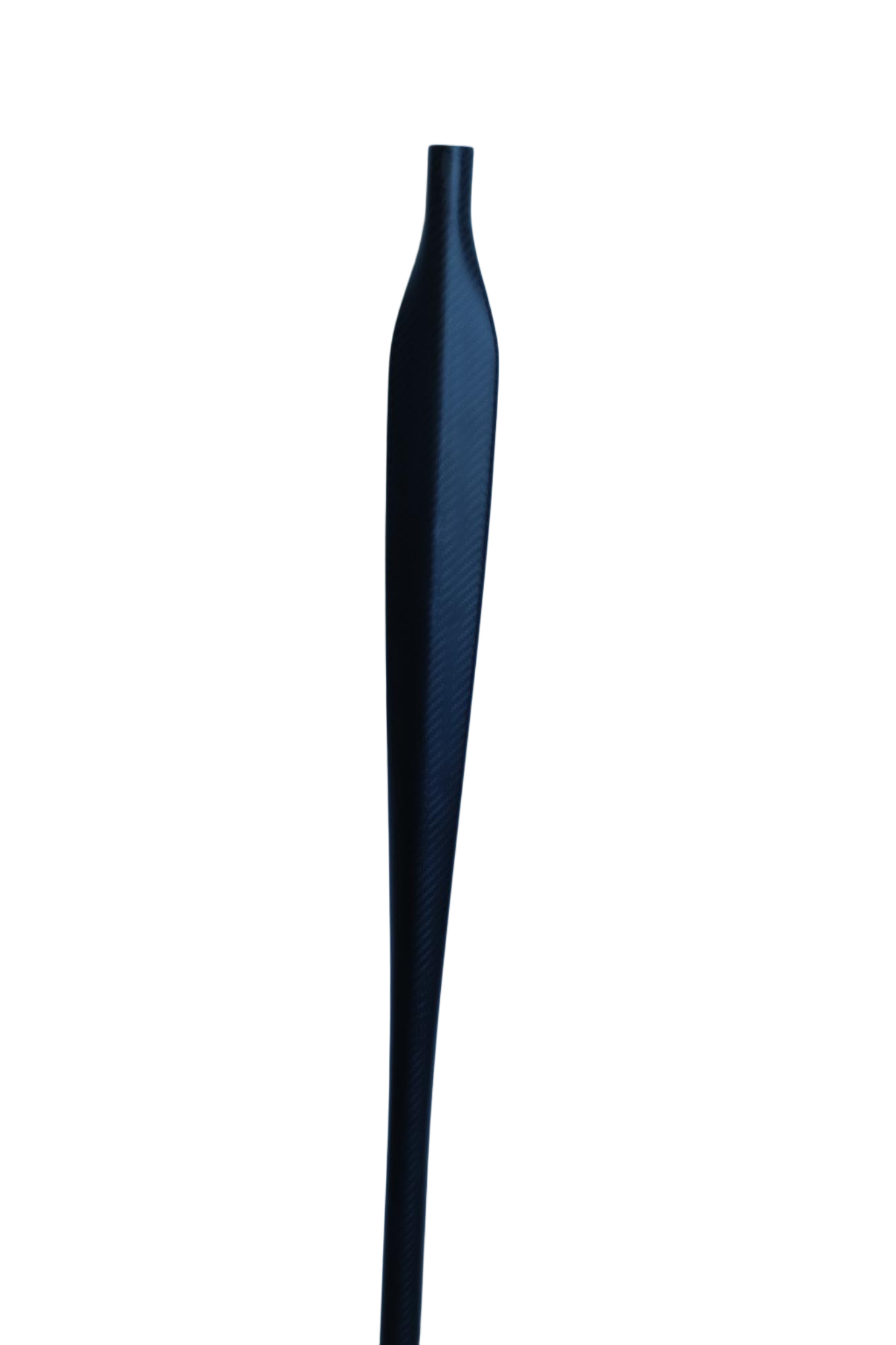

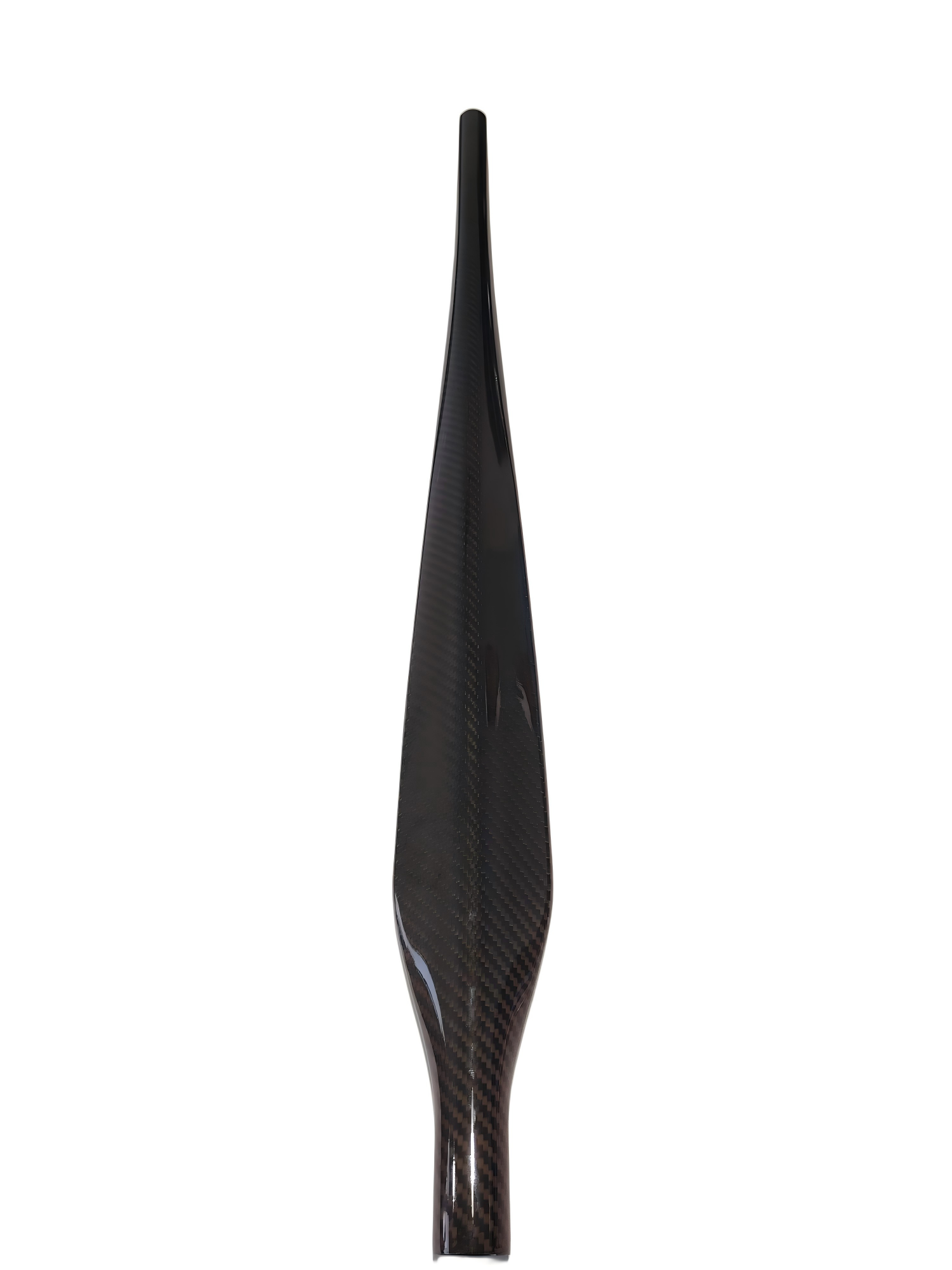

The carbon fiber speargun barrel is the core component of modern spearfishing equipment. Made from high-strength carbon fiber composite materials, it is designed specifically for freediving spearfishing and deep-sea hunting. With its outstanding lightweight properties, excellent corrosion resistance, and superior rigidity, the carbon fiber speargun barrel has become the preferred choice for professional spearfishing enthusiasts.

Compared with traditional metal or aluminum alloy speargun barrels, the carbon fiber version significantly reduces the burden of holding the gun underwater while providing greater accuracy and a longer service life. Whether hunting among tropical coral reefs or chasing large migratory fish in the deep blue sea, this high-performance speargun barrel helps you move effortlessly in the underwater world.

What is a Carbon Fiber Speargun Barrel?

A carbon fiber speargun barrel is a hollow tube made from carbon fiber composite materials. It serves as the main structure of the speargun, responsible for guiding the spear, supporting the firing mechanism, and connecting various components.

A modern high-performance carbon fiber speargun barrel consists of three key elements:

• High-Modulus Carbon Fiber Core: Made from high-strength carbon fiber tows that form the framework. These fibers, finer than a human hair yet exceptionally strong, are carefully wound or laid in specific directions to create a rigid, torsion-resistant structure. The carbon fiber content typically exceeds 60%.

• High-Performance Polymer Matrix: Epoxy resin firmly bonds the carbon fibers together, effectively distributing impact forces across each fiber, ensuring excellent fatigue resistance, impact toughness, and long-term environmental durability.

• Precision Metal Fittings: Critical connection points (such as the trigger mechanism housing and muzzle) are reinforced with high-strength metal components, providing outstanding wear resistance and reliable connection strength.

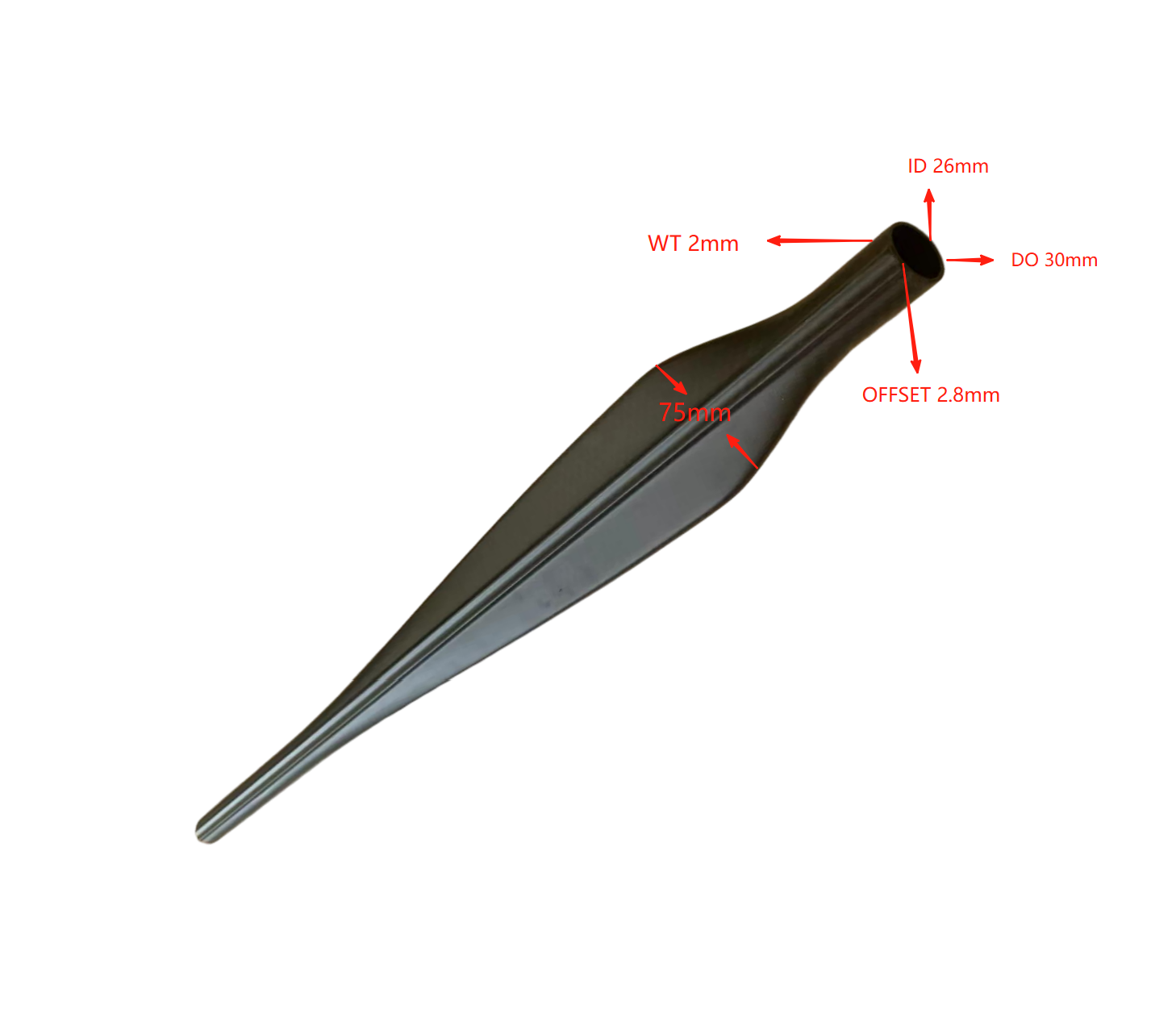

Unique Advantages of the Flat Tube Design: This product features a distinctive flat tube design (common dimensions: 26×30mm). This geometry not only enhances torsional rigidity but also effectively reduces underwater drag, improving the initial velocity and flight stability of the spear, ensuring a longer effective range and higher hit rate.

Key Advantages

Ultimate Lightweight Construction (Core Advantage)

Carbon fiber has a density of approximately 1.5–1.6 g/cm³, significantly lower than aluminum alloy (approx. 2.7 g/cm³) and steel (approx. 7.8 g/cm³). For a speargun barrel of the same length and specification, a carbon fiber version can be 30%–50% lighter.

This means:

• Reduced arm fatigue during extended aiming and handling underwater

• Enhanced maneuverability for quick aiming adjustments

• Efficient conservation of the diver‘s energy and oxygen consumption




Exceptional Rigidity – The Foundation of Accuracy

High-modulus carbon fiber offers remarkable rigidity (elastic modulus typically exceeding 230 GPa, surpassing that of steel):

• Excellent Bending Resistance: Even under maximum load from powerful rubber bands (such as dual 16mm or thicker), barrel flex is minimal, ensuring shooting stability

• Superior Torsional Stiffness: Precise fiber orientation (e.g., ±45° layup) provides outstanding torsional stiffness, preventing barrel twist caused by rubber band torque or water currents, resulting in a highly predictable shooting trajectory

• Rapid Dynamic Response: The combination of extremely high specific stiffness and low mass gives the barrel very low inertia, allowing energy to be transferred more efficiently to the spear during firing, significantly increasing spear velocity and kinetic energy, thereby extending the effective range




Excellent Corrosion Resistance

Carbon fiber and epoxy resin naturally resist seawater and salt spray, eliminating the oxidation, rust, and galvanic corrosion issues inherent to metal barrels.

• Easy to restore to like-new condition after prolonged seawater exposure with a simple freshwater rinse

• Minimal maintenance requirements and significantly extended service life

• Particularly suitable for long-term use in marine environments




Optimized Buoyancy Characteristics

The density of carbon fiber composite is close to that of seawater (approx. 1.02–1.03 g/cm³). With precise wall thickness and structural design, a carbon fiber speargun barrel can achieve near-neutral or slightly positive buoyancy.

• Significantly reduces the perceived weight of the gun underwater

• Enhances lightness and balance while handling

• Minimizes physical effort required to adjust gun position




Superior Fatigue Resistance

Carbon fiber composites far exceed metals in fatigue resistance. They can withstand countless tension-release cycles and inevitable impacts during underwater operations without permanent deformation or loss of strength, ensuring consistent long-term performance.

Technical Specifications

Note: The above parameters are typical values and can be customized according to specific requirements.

Main Application Scenarios

Freediving Spearfishing

Lightweight construction and neutral buoyancy are crucial. A carbon fiber speargun barrel conserves valuable oxygen and energy, extending efficient hunting time — especially important for long-distance swimming and deep dives.

Shore / Reef Hunting

In complex reef environments, a lightweight and agile carbon fiber barrel allows for quick aiming and maneuvering in tight spaces. Its excellent impact resistance also withstands accidental collisions with rocks.

Bluewater (Offshore) Hunting

Hunting large, fast-moving pelagic fish (such as tuna and giant trevally) requires a long barrel (over 1.3 meters) with powerful rubber bands. Carbon fiber provides unmatched lightweight handling and maneuverability while maintaining the rigidity and power needed for long barrels.

Competitive Spearfishing

In high-stakes spearfishing competitions, peak performance is essential. Carbon fiber speargun barrels, with their precision, responsiveness, and reliability, have become the top choice for elite competitors.

Carbon Fiber vs. Traditional Materials Comparison

A carbon fiber speargun barrel is approximately 45% lighter than an aluminum barrel, several times stronger, and completely corrosion-free. Although the initial purchase cost is higher than traditional materials, the carbon fiber speargun barrel offers exceptional value in terms of service life, maintenance costs, and actual user experience.

Usage and Maintenance Recommendations

1. Rinse After Use: Rinse the speargun barrel with fresh water after each outing to remove salt residue and maintain a clean surface

2. Avoid Hard Impacts: Although carbon fiber has excellent impact resistance, avoid violent collisions with hard objects

3. Store in a Cool Place: Avoid prolonged direct sunlight to prevent aging of the surface coating

4. Regular Inspection: Periodically check critical connection points (trigger mechanism housing, muzzle) for abnormal wear

5. Proper Transport: Use a dedicated gun bag or protective sleeve during transport to avoid crushing or deformation




Customization Services

We understand that every diver has unique requirements. Whether it is barrel length, outer diameter, wall thickness, surface finish, or weave pattern, we can provide customized services based on your specific needs.

Customization Options Include:

• Length: Any size within 500–2000 mm

• Cross-Sectional Shape: Round, flat/D-shaped, oval

• Carbon Fiber Grade: T300, T700, M40, etc.

• Weave Pattern: Plain, twill, 3K/6K/12K, etc.

• Surface Finish: Gloss, matte, color, camouflage




Conclusion

A carbon fiber speargun barrel is far more than just a tube for launching a spear — it is the underwater embodiment of materials science, structural mechanics, and fluid dynamics. From the effortless lightness you feel during descent, to the rock-solid stability when aiming, to the efficient transfer of raw power at the moment of firing, carbon fiber technology is redefining the spearfishing experience.

It reduces the hunter’s burden, amplifies their power, and transforms encounters in the deep sea into precise and effective catches. When you glide through the water and lock onto your target with a carbon fiber speargun barrel in hand, you are holding not just equipment, but the pinnacle of modern underwater hunting technology.
